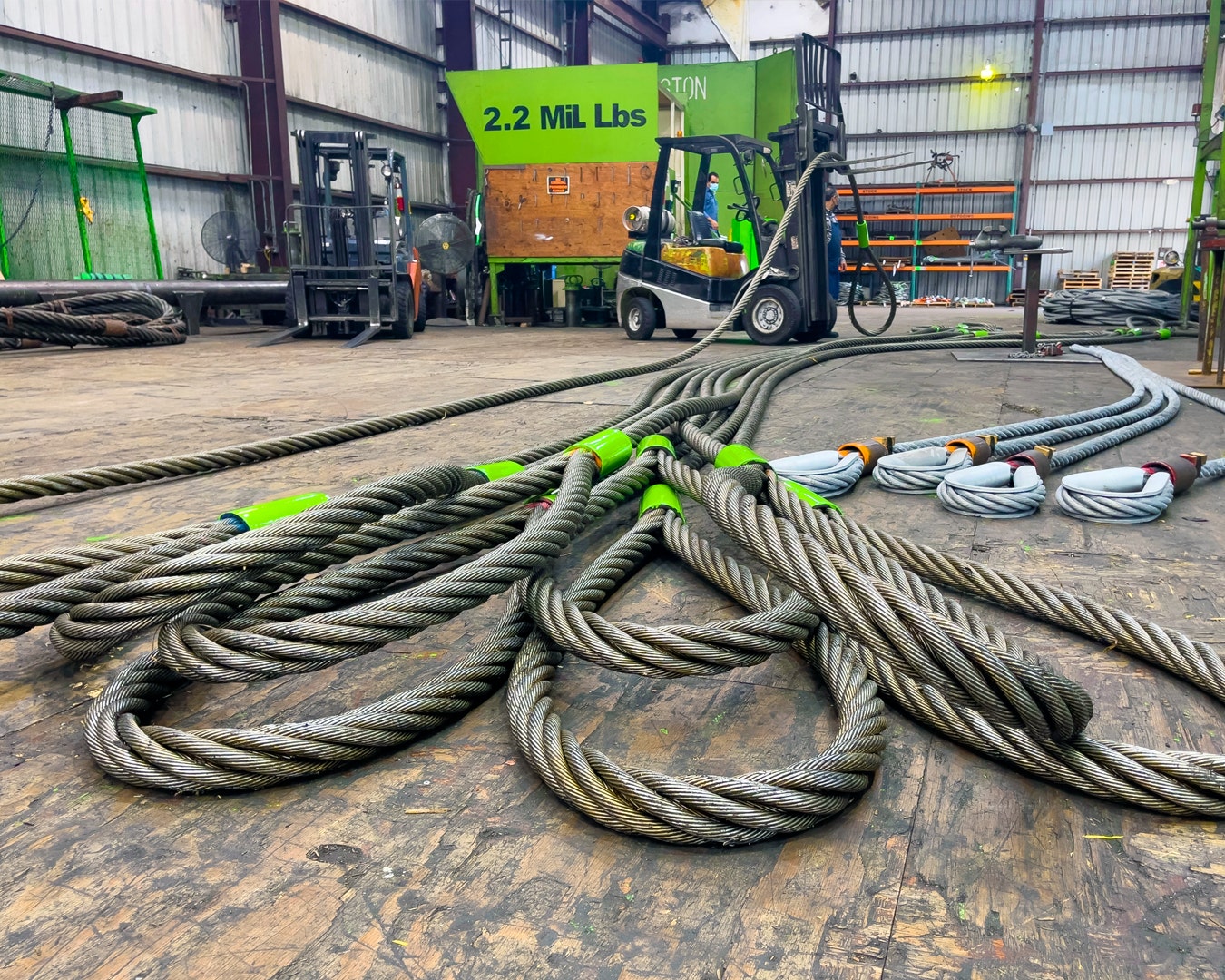

Eye & Eye Wire Rope Slings
Eye & Eye Slings are available in various sizes and materials to meet the application's specific needs. Eye & Eye Slings are made from high-quality materials and are designed to withstand the rigors of everyday use.
When selecting an Eye & Eye Sling, it is crucial to consider the following factors:
- The weight of the load to be lifted.
- The type of material to be lifted
- The environment in which the sling will be used
- The required lifting capacity
- Eye & Eye Slings should be inspected regularly for signs of wear and tear. Slings that are damaged should be removed from service immediately.
HH-105-EE
Wire Rope Dia.(inches) | Rated Capacities in Tons | Standard Eye Dimensions | Heavy Duty Thimble Eye Dimensions | Minimum Sling Length | ||||
---|---|---|---|---|---|---|---|---|
Vertical Hitch | Choker Hitch | Vertical Basket Hitch | W” | L” | W” | L” | ||
1/4” | 0.65 | 0.48 | 1.3 | 2” | 4” | 7/8” | 1-5/8” | 1’6” |
5/16” | 1 | 0.74 | 2 | 2-1/2” | 5” | 1-1/16” | 1-7/8” | 1’9” |
3/8” | 1.4 | 1.1 | 2.9 | 3” | 6” | 1-1/8” | 2-1/8” | 2 |
1/2” | 2.5 | 1.9 | 5.1 | 4” | 8” | 1-1/2” | 2-3/4” | 2’6” |
9/16” | 3.2 | 2.4 | 6.4 | 4-1/2” | 9” | 1-1/2” | 2-3/4” | 2’9” |
5/8” | 3.9 | 2.9 | 7.8 | 5” | 10” | 1-3/4” | 3-1/4” | 3 |
3/4” | 5.6 | 4.1 | 11 | 6” | 12” | 2” | 3-3/4” | 3’6” |
7/8” | 7.6 | 5.6 | 15 | 7” | 14” | 2-1/4” | 4-1/4” | 4 |
1” | 9.8 | 7.2 | 20 | 8” | 16” | 2-1/2” | 4-1/2” | 4’6” |
1-1/8” | 12 | 9.1 | 24 | 9” | 18” | 2-7/8” | 5-1/8” | 5 |
1-1/4” | 15 | 11 | 30 | 10” | 20” | 2-7/8” | 5-1/8” | 5’6” |
1-3/8” | 18 | 13 | 36 | 11” | 22” | 3-1/2” | 6-1/4” | 6 |
1-1/2” | 21 | 16 | 42 | 12” | 24” | 3-1/2” | 6-1/4” | 7 |
1-3/4” | 28 | 21 | 57 | 14” | 28” | 4-1/2” | 9” | 8 |
2” | 37 | 28 | 73 | 16” | 32” | 6” | 12” | 9 |
2-1/4” | 44 | 35 | 89 | 18” | 36” | 7” | 14” | 10 |
2-1/2” | 54 | 42 | 109 | 20” | 40” | 11 | ||
2-3/4” | 65 | 51 | 130 | 22” | 44” | 12 | ||
3” | 77 | 60 | 153 | 24” | 48” | 13 | ||
3-1/2” | 102 | 79 | 203 | 28” | 56” | 16’6” | ||
4” | 130 | 100 | 257 | 32” | 64” | 20 | ||
4-1/2” | 160 | 124 | 320 | 36” | 72” | 24 | ||
6” | 257 | 200 | 513 | 48” | 96” | 30 |
Rated capacities of basket hitches are based on 40 times wire rope diameter (1/4″ through 1″ diameter slings) and 25 times wire rope diameter (1-1/8″ and larger diameter slings). Basket ratings are calculated for vertical lifting. Appropriate reductions must be made when angular lifting is involved.
All slings are proof-tested to 2 times working load limit. Design factor is 5:1.
