Grade 100 Chain Sling Components
Working load limit - 4 to 1 design factor
| Chain Size |
 |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|---|---|

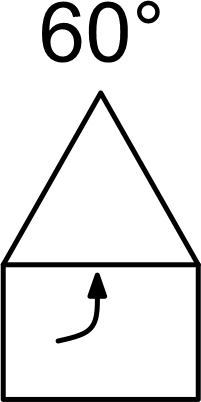

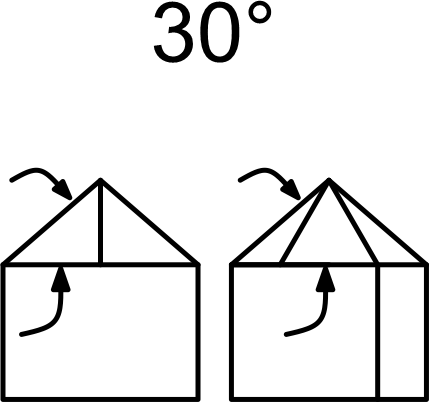

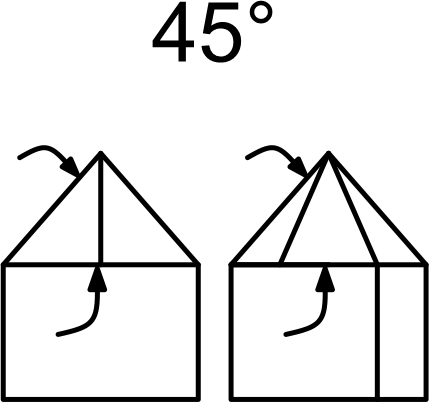

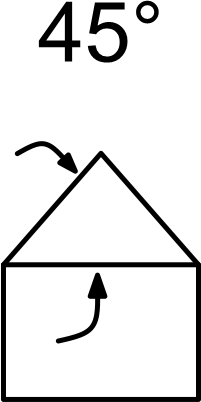

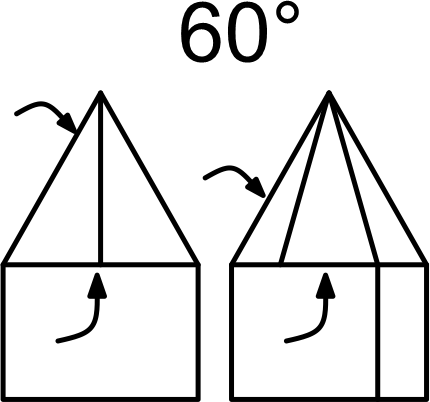

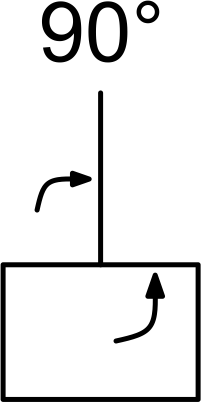

| (in.) | (mm) | Single Leg | Double Leg | Triple & Quad Leg | ||||
| – | 6 | 3200 | 5500 | 4500 | 3200 | 8300 | 6800 | 4800 |
| 1/4 (9/32) | 7 | 4300 | 7400 | 6100 | 4300 | 11200 | 9100 | 6400 |
| 5/16 | 8 | 5700 | 9900 | 8100 | 5700 | 14800 | 12100 | 8500 |
| 3/8 | 10 | 8800 | 15200 | 12400 | 8800 | 22900 | 18700 | 13200 |
| 1/2 | 13 | 15000 | 26000 | 21200 | 15000 | 39000 | 31800 | 22500 |
| 5/8 | 16 | 22600 | 39100 | 32000 | 22600 | 58700 | 47900 | 33900 |
| 3/4 | 20 | 35300 | 61100 | 49900 | 35300 | 91700 | 74900 | 52950 |
| 7/8 | 22 | 42700 | 74000 | 60400 | 42700 | 110900 | 90600 | 64000 |
| 1 | 26 | 59700 | 109400 | 84400 | 59700 | 155100 | 12600 | 89550 |

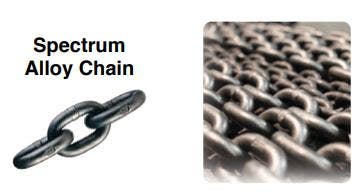

*For choker applications, the working load limit must be reduced by 20%. The Crosby A-1338 cradle grab hook doesn’t require any reduction of the working load limit. The design factor of 4:1 on Spectrum 10 alloy chain agrees with the design factor used by the International Standards Organization (ISO) and ANSI B30.9 and is the preferred set of working load limit values to be used.
All Grade 100 fittings shown below can also be attached to Grade 80 chain.
Types of Chain Slings:
| Attachments |
| TYPE | ONE END | OPPOSITE END |
|---|
| Single Chain Slings |
|
TYPE
|
ONE END
|
OPPOSITE END
|
|---|---|---|
|
SOS
|
Oblong Link
|
Sling Hook
|
|
SOG
|
Oblong Link
|
Grab Hook
|
|
SGS
|
Grab Hook
|
Sling Hook
|
|
SGG
|
Grab Hook
|
Grab Hook
|
|
SSS
|
Sling Hook
|
Sling Hook
|
|
SOF
|
Oblong Link
|
Foundry Hook
|
|
SOO
|
Oblong Link
|
Oblong Link
|
| Double Chain Slings |
|
TYPE
|
ONE END
|
OPPOSITE END
|
|---|---|---|
|
DOS
|
Oblong Link
|
Sling Hooks
|
|
DOG
|
Oblong Link
|
Grab Hooks
|
|
DOF
|
Oblong Link
|
Foundry Hooks
|
| Triple Chain Slings |
|
TYPE
|
ONE END
|
OPPOSITE END
|
|---|---|---|
|
TOS
|
Oblong Link
|
Sling Hooks
|
|
TOG
|
Oblong Link
|
Grab Hooks
|
|
TOF
|
Oblong Link
|
Foundry Hooks
|
| Quadruple Chain Slings |
|
TYPE
|
ONE END
|
OPPOSITE END
|
|---|---|---|
|
QOS
|
Oblong Link
|
Sling Hooks
|
|
QOG
|
Oblong Link
|
Grab Hooks
|
|
QOF
|
Oblong Link
|
Foundry Hooks
|
How To Order
The following information should be given on orders or inquires for chain slings.
- SIZE: This is specified by the size of the material from which the chain is made, determined by working load limit required.
- REACH: This is the length, including attachments, measured from bearing point to bearing point.
- TYPE: Select and specify proper type of sling from list shown. Examples: S = single; O = oblong link; S = sling hook
- ATTACHMENTS: Unless otherwise specified standard master links as given herein will be used. When other than standard master links or hooks are required, we should be given a complete description or a drawing of the requested substitute.
When hot galvanizing is specified our recommended working load limits must be reduced.
Please
contact us with all such inquires.
