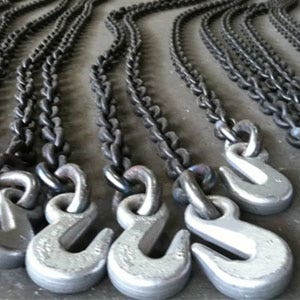

Alloy Chain Slings are manufactured from special analysis alloy steel and engineered for a superior combination of strength and durability. Holloway Houston offers a variety of chain slings ranging from 1/4″ to 1 1/2″ in diameter, and fabricated using Grade 80 or Grade 100 chain.
Alloy Chain Slings
Grade 80 & Grade 100 Alloy Chain
|Single Leg Sling||Double Leg Sling||Triple & Quad Leg Sling|
* Large diameter chain manufactured at our Jeannette facility.
Do not exceed Working Load Limits (WLL)! Failure to read, understand and follow the CAUTIONS listed here may cause serious physical injury and property damage.
- Do Not load an assembly in excess of working load limits shown.
- Do Not put an unequal load on one leg of a sling. Distribute the load evenly.
- Do Not expose assembly to impact, rapid lifts or sudden stops.
- Do Not tie knots or allow chains to become twisted.
- Do Not use a chain that appears to be defective, worn or damaged.
- Do Not fasten chain over sharp corners or edges. Protect with padding.
- Do Not tip load hooks. The latch must never support the load.
When using non-cradle or non-shortening grab hooks in a shortening or choker application, the Working Load Limit (WLL) of the sling must be reduced by 20%.
