Straightpoint: Load Cell Technology for Safe and Accurate Lifting

The TIMH is a wireless tensiometer used for monitoring line tension during towing, mooring, and cable laying especially when there’s no fixed anchor point. It measures tension at speeds up to 20m/min (65ft/min) and supports wire rope setups up to 150t. Two versions are available: one with 2.4GHz wireless (range up to 700m/2300ft) and another with Bluetooth (range up to 100m/328ft) for use with SP’s HHP app. Available in wireless or cabled models, it works with Straightpoint handheld displays and software.

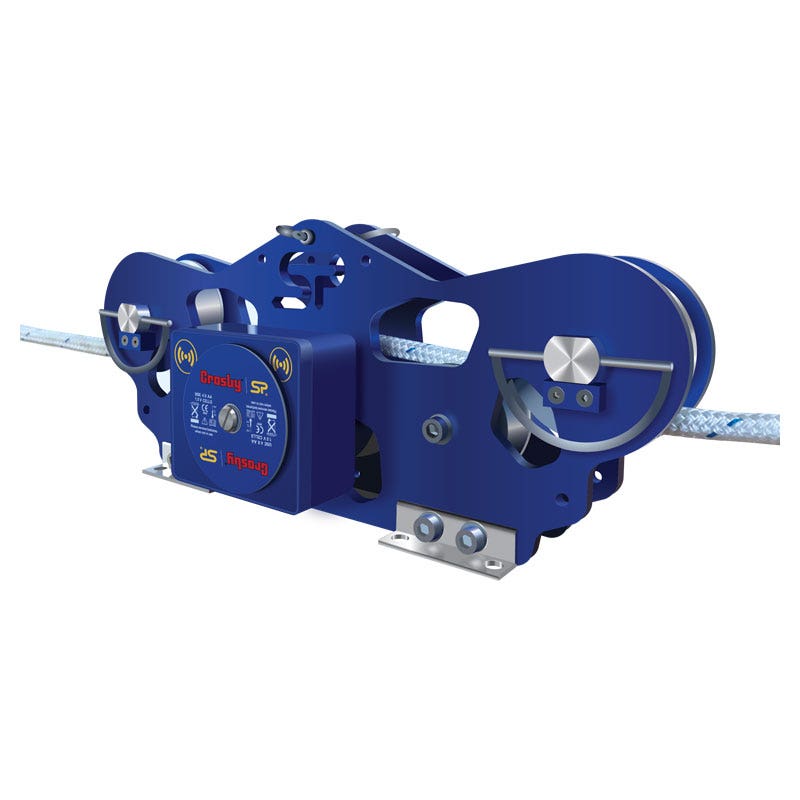

CableSafe is a lightweight tension monitoring tool used to measure and control line tension during cable and rope pulling operations. It helps prevent overstretching, reduces the risk of damage, and supports safer handling in applications like electrical cable pulls, tower erection, and telecom installations. Designed for quick setup and reliable accuracy, CableSafe also offers Bluetooth connectivity for remote monitoring. For complete specifications, setup details, and application examples, please refer to the brochure below.

Straightpoint’s Loadlink Plus is the original electronic force measurement device with a built-in display, trusted worldwide since 1979. Available in capacities from 1t to 300t, it’s widely used across industries like manufacturing, aerospace, oil & gas, and utilities. Built with high-grade aluminum and microprocessor-based electronics, it provides precision load monitoring with advanced features like peak hold, overload counter, and unit selection. Its lightweight yet strong design can helps in demanding lifting and testing environments.

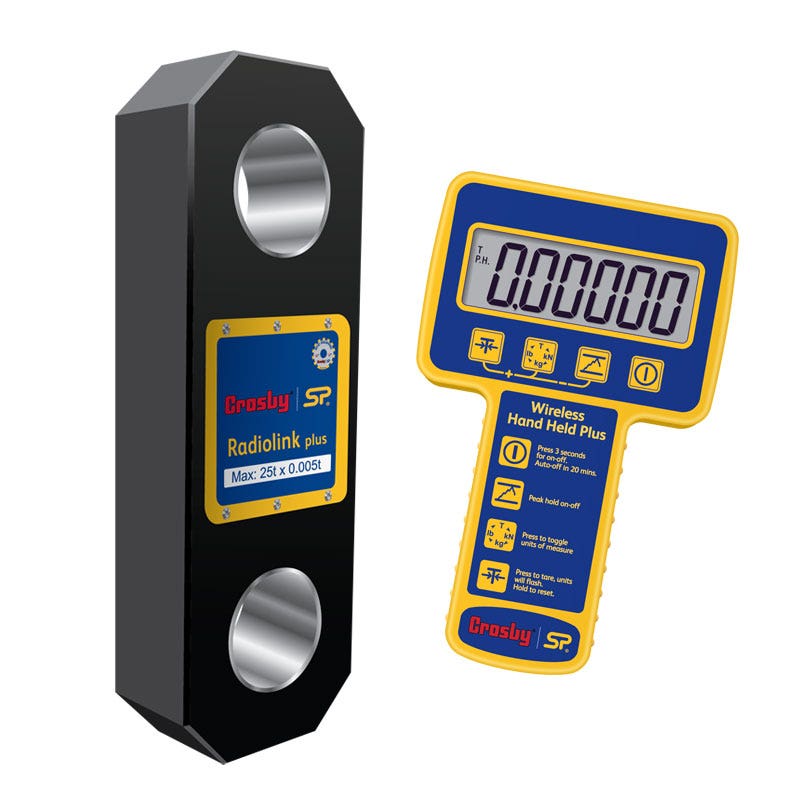

The Radiolink Plus is a DNV-GL type-approved wireless tension load cell designed for use with Crosby standard shackles. Available in capacities from 1t to 500t, it delivers accurate load monitoring in harsh conditions. Built from aerospace-grade aluminium with IP67/NEMA6 protection, it offers long-range 2.4GHz (up to 1000m), Bluetooth (100m), and ATEX-certified versions for hazardous zones. Compatible with Straightpoint’s INSIGHT software, it enables high-speed data logging and remote monitoring. For full specifications, see the PDF.

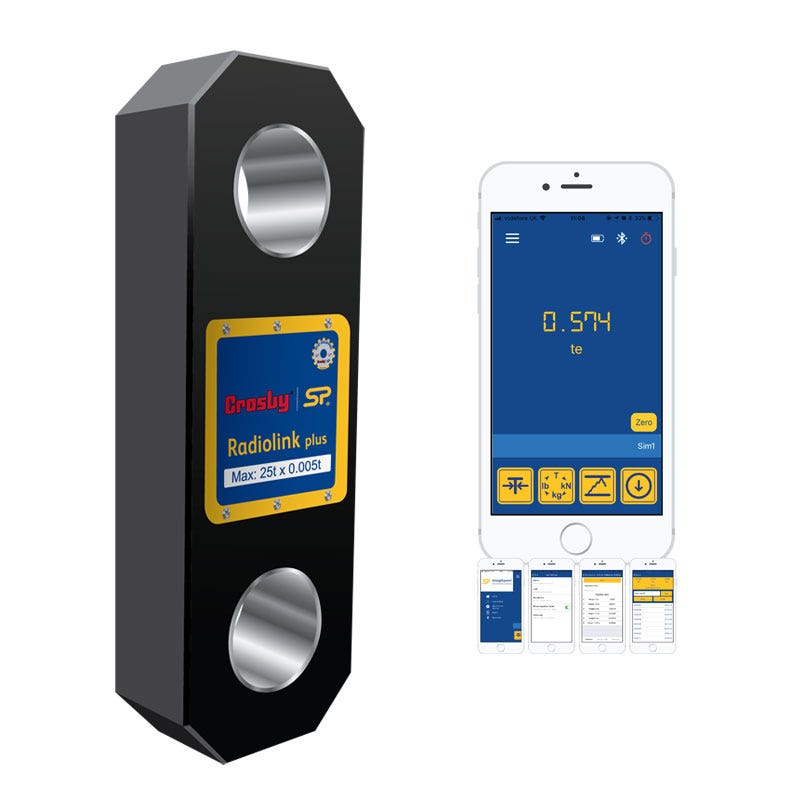

The Radiolink Plus BLE is a Bluetooth-enabled wireless tension load cell designed for use with Crosby standard shackles, available in capacities from 1t to 500t. Made from aerospace-grade aluminum and approved by DNV-GL, it offers IP67/NEMA6 protection for reliable performance in harsh environments. Connecting via Bluetooth 4.2 to the free HHP app (iOS/Android), it supports a wireless range of up to 100m, multi-device pairing, measurement reporting, peak hold, and alarms suited for modern lifting and monitoring tasks.

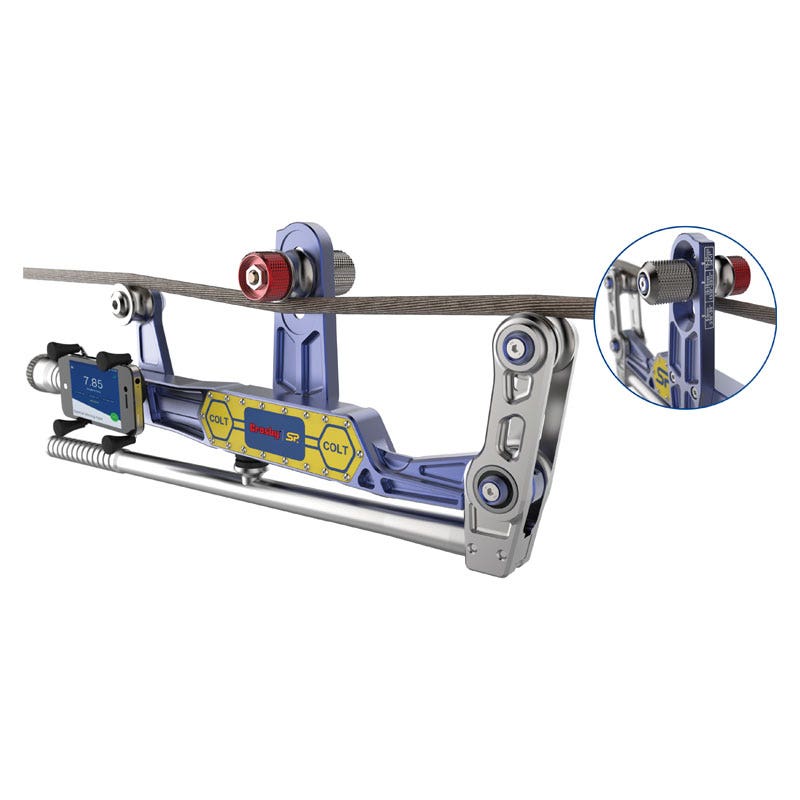

The Clamp On Line Tensionmeter (COLT) is a compact, handheld device used to measure tension on pre-installed wire ropes up to 1" (25mm) in diameter. It quickly clamps onto the cable without the need to disconnect or loosen it, making it ideal for applications like elevator cable checks, structural tensioning, and guy wire maintenance. The COLT connects to a mobile app via Bluetooth for easy tension readings and data logging in the field. For detailed specifications, features, and usage modes, please refer to the brochure below.

Straightpoint’s Compression Load Cells for applications that demand accurate, high-capacity force measurement. Available in capacities from 5te to 1000te with custom sizes on request, these load cells are crafted from high-grade stainless steel for strength and corrosion resistance. Easy to transport and designed for challenging environments, they’re used in mining, energy, marine, defense, and rigging operations, with stable microprocessor-based electronics and high sampling rates. For more details, check below.

The Straightpoint WNI Wireless Compression Loadcell is designed for high-capacity force measurement across large-scale lifting and load monitoring. It connects wirelessly via 2.4GHz or Bluetooth to handheld devices, the INSIGHT software, or the HHP app for real-time data tracking and center of gravity analysis. Made from 17-4PH stainless steel and sealed to IP67/NEMA6, it supports use in harsh and remote environments across heavy lifting, marine, structural, and transport applications.

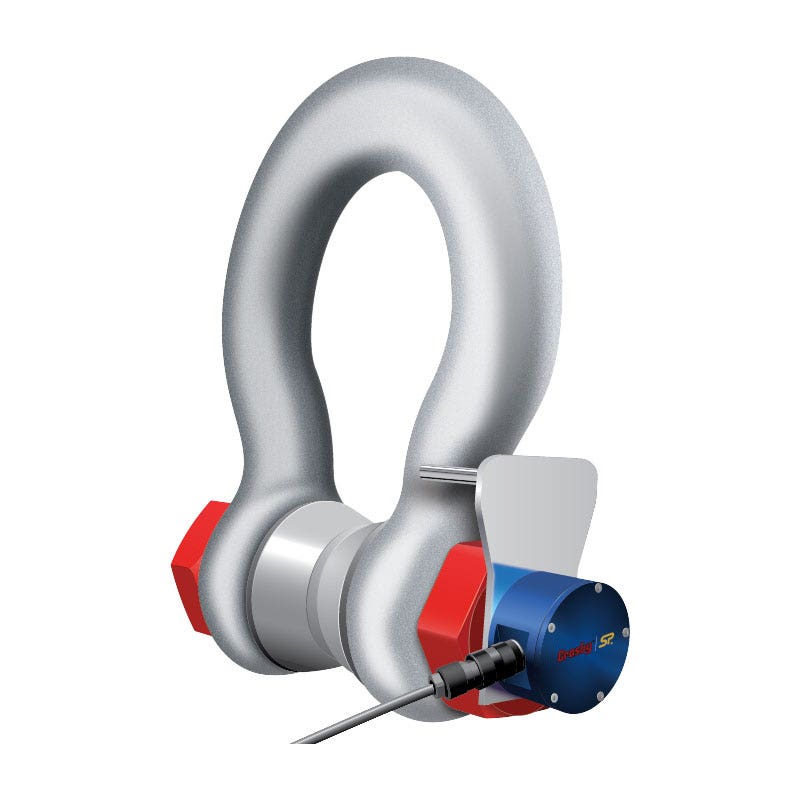

The Cabled Loadshackle is a compact, low-headroom tool for accurate load monitoring in demanding environments. Available from 3.25t to 500t (custom up to 3000t), it pairs with Crosby anchor shackles and supports crane weighing, mooring, and subsea use. With IP67 sealing, optional subsea versions, and advanced electronics, it integrates with PLCs, data loggers, or the Straightpoint Handheld Plus for real-time feedback. Each unit is proof tested and supplied with calibration.

Designed for lifting and moving large industrial assets such as turbines, vessels, towers, and offshore components, Straightpoint’s Wireless Centre of Gravity System delivers accurate weight distribution and center of gravity analysis in real time. Compatible with up to 36 wireless compression load cells, the system provides 100% wireless operation, long-range communication (up to 700m), and ISO19901-compliant reporting, making it a trusted tool for complex heavy-lift operations.

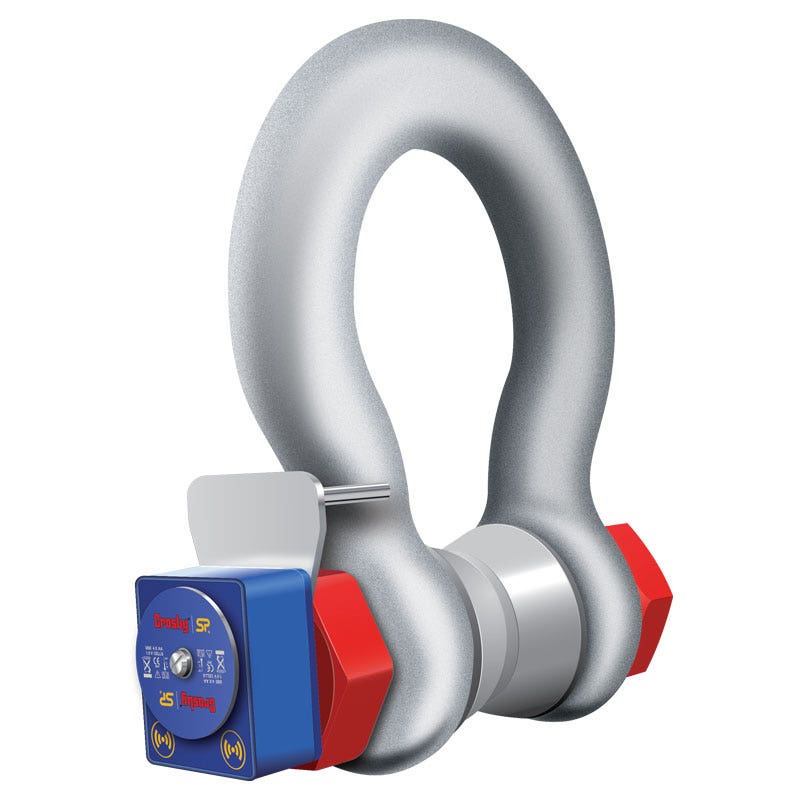

Straightpoint’s Wireless Loadshackle (WLS) is a compact, high-capacity load monitoring system designed for applications where headroom is limited or in heavy lifting areas. Manufactured with Crosby shackles and available in capacities from 3.25t to 500t (up to 3000t on request), it combines a robust design with wireless functionality. Options include standard 2.4GHz, Bluetooth, and ATEX/IECEx for hazardous environments. Each unit is IP67 rated and equipped for real-time load data via handheld devices or software.

Wirelink Plus is a non-indicating tension load cell designed to work with Straightpoint's Handheld Plus or integrated systems like PLCs and DAQs. Made from aerospace-grade aluminium, it delivers reliable load monitoring across lifting, pulling, and testing operations. This lightweight, cabled dynamometer is available with multiple analog and digital output options, including mV/V, RS-422, RS-485, and 4-20mA, making it compatible with a wide range of industrial applications. For more details, check the PDF below.
