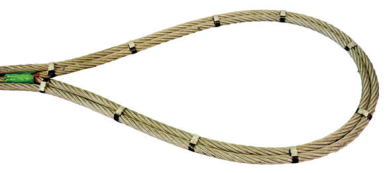

Three-part Wire Rope Slings
Three-part wire rope slings are a type of wire rope sling made from high-quality components designed to provide exceptional stability and strength when lifting loads. They are available in various sizes and are proof-tested to two times their working load limit.
Three-part wire rope slings are made up of three legs that are connected to a central eye. The legs are made from high-quality wire rope designed to withstand the rigors of everyday use. The central eye is made from a strong and durable material designed to prevent the sling from coming undone.
Three-part wire rope slings are available in various sizes to accommodate various loads. They are also available in various materials to meet the application's specific needs.
Three-part wire rope slings are proof-tested to two times their working load limit. This means they can safely lift loads twice their rated capacity.
Three-part wire rope slings are versatile and reliable wire rope sling ideal for various lifting applications. They are made from high-quality components designed to provide exceptional stability and strength.
Benefits of Using Three-part wire rope slings:
- Strength: Three-part wire rope slings are strong and can lift heavy loads.
- Durability: Three-part wire rope slings are made from high-quality materials and are designed to withstand the rigors of everyday use.
- Versatility: Three-part wire rope slings are available in various configurations and can be used for various applications.
- Cost-effectiveness: Three-part wire rope slings are cost-effective for lifting heavy loads.
If you are not sure how to proceed, our sales team is here to help. Tell them what you need and why you need it, and our experts will fetch the most suitable wire slings for you.
How to Choose the Right Three-Part EIPS Sling:
When choosing a three-part EIPS sling, it is vital to consider the following factors:
- The weight of the load that you will be lifting.
- The type of load that you will be lifting.
- The environment in which you will be lifting the load.
- The working load limit (WLL) of the sling.
- Ensuring the sling is appropriately inspected and maintained before each use is also essential.
| Component Wire Rope Diameter | Vertical Capacity | Sling Body Diameter | Eye Length | Approx. Weight in Lbs. per Foot |
|---|---|---|---|---|
| Inches | Tons | Inches | Inches | |
| 3/4” | 14.0 | 1-1/2” | 20” | 4.2 |
| 7/8” | 19.0 | 1-3/4” | 24” | 5.7 |
| 1” | 24.8 | 2” | 28” | 7.4 |
| 1-1/8” | 31.2 | 2-1/4” | 32” | 9.4 |
| 1-1/4” | 38.4 | 2-1/2” | 36” | 11.6 |
| 1-3/8” | 46.0 | 2-3/4” | 40” | 14.0 |
| 1-1/2” | 55.0 | 3” | 44” | 16.6 |
| 1-3/4” | 73.0 | 3-1/2” | 52” | 22.7 |
| 2” | 95.0 | 4” | 56” | 29.5 |
| 2-1/4” | 118.0 | 4-1/2” | 64” | 37.4 |
| 2-1/2” | 145.0 | 5” | 72” | 46.4 |
| 2-3/4” | 173.0 | 5-1/2” | 80” | 64.0 |
| 3” | 204.0 | 6” | 88” | 66.4 |
| 3-1/2” | 270.0 | 7” | 96” | 90.8 |
| 4” | 343 | 8” | 112” | 118.4 |
| 4-1/2” | 384 | 9” | 126” | 149.6 |
| 6” | 660 | 12” | 168” | 264.7 |
