Pendant Lines - Socket Lines - Mooring Lines from Holloway

Pendant Lines - Socket Lines - Mooring Lines

Pendant Lines, Socket Lines, and Mooring Lines are lines used to connect a load to a lifting device. The lines are made from high-quality materials and are designed to withstand the rigors of everyday use. Pendant, Socket, and Mooring Lines are commonly used in construction, manufacturing, mining, oil and gas, utilities, and transportation

Pendant Lines, Socket Lines, and Mooring Lines are available in various sizes and materials to meet the application's specific needs. Pendant Lines, Socket Lines, and Mooring Lines are made from high-quality materials and designed to withstand everyday use's rigors.

When selecting a Pendant Line, Socket Line, or Mooring Line, it is important to consider the following factors:

  • The weight of the load to be lifted
  • The type of material to be lifted
  • The environment in which the line will be used
  • The required lifting capacity
  • The length of the line
  • The type of terminations
  • The cost

Pendant lines should be inspected regularly for signs of wear and tear. Lines that are damaged should be removed from service immediately.

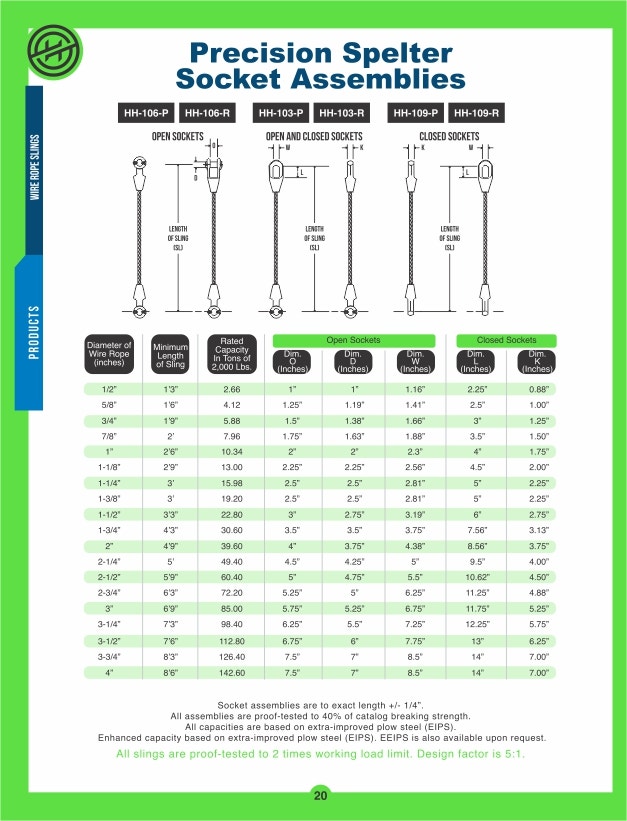

Pendant Lines - Socket Lines - Mooring Lines
PDF Download

Pendant Lines - Socket Lines - Mooring Lines

Diameter of Wire Rope (inches) Minimum Length of Sling Rated Capacity In Tons of 2,000 Lbs. Open Sockets Closed Sockets
Dim.
O
(Inches)		 Dim.
D
(Inches)		 Dim.
W
(Inches)		 Dim.
L
(Inches)		 Dim.
K
(Inches)
1/2” 1’3” 2.66 1” 1” 1.16” 2.25” 0.88”
5/8” 1’6” 4.12 1.25” 1.19” 1.41” 2.5” 1.00”
3/4” 1’9” 5.88 1.5” 1.38” 1.66” 3” 1.25”
7/8” 2’ 7.96 1.75” 1.63” 1.88” 3.5” 1.50”
1” 2’6” 10.34 2” 2” 2.3” 4” 1.75”
1-1/8” 2’9” 13.00 2.25” 2.25” 2.56” 4.5” 2.00”
1-1/4” 3’ 15.98 2.5” 2.5” 2.81” 5” 2.25”
1-3/8” 3’ 19.20 2.5” 2.5” 2.81” 5” 2.25”
1-1/2” 3’3” 22.80 3” 2.75” 3.19” 6” 2.75”
1-3/4” 4’3” 30.60 3.5” 3.5” 3.75” 7.56” 3.13”
2” 4’9” 39.60 4” 3.75” 4.38” 8.56” 3.75”
2-1/4” 5’ 49.40 4.5” 4.25” 5” 9.5” 4.00”
2-1/2” 5’9” 60.40 5” 4.75” 5.5” 10.62” 4.50”
2-3/4” 6’3” 72.20 5.25” 5” 6.25” 11.25” 4.88”
3” 6’9” 85.00 5.75” 5.25” 6.75” 11.75” 5.25”
3-1/4” 7’3” 98.40 6.25” 5.5” 7.25” 12.25” 5.75”
3-1/2” 7’6” 112.80 6.75” 6” 7.75” 13” 6.25”
3-3/4” 8’3” 126.40 7.5” 7” 8.5” 14” 7.00”
4” 8’6” 142.60 7.5” 7” 8.5” 14” 7.00”
Diameter of Wire Rope (inches) Minimum Length of Sling Rated Capacity In Tons of 2,000 Lbs. Open Sockets Closed Sockets
Dim.
O
(Inches)		 Dim.
D
(Inches)		 Dim.
E
(Inches)		 Dim.
K
(Inches)		 Dim.
W
(Inches)
1/4” 0’11” 0.69 0.69” 0.69” 1.15” 0.5” 0.75”
5/16” 1’3” 1.05 0.81” 0.81” 1.36” 0.67” 0.88”
3/8” 1’3” 1.50 0.81” 0.81” 1.36” 0.67” 0.88”
7/16” 1’8” 2.04 1” 1” 1.5” 0.86” 1.06”
1/2” 1’8” 2.66 1” 1” 1.5” 0.86” 1.06”
9/16” 2’0” 3.36 1.25” 1.19” 1.65” 1.13” 1.25”
5/8” 2’0” 4.12 1.25” 1.19” 1.65” 1.13” 1.25”
3/4” 2’5” 5.88 1.5” 1.38” 2.06” 1.31” 1.44”
7/8” 2’10” 7.96 1.75” 1.62” 2.44” 1.5” 1.69”
1” 3’2” 10.34 2” 2” 2.75” 1.75” 2.06”
1-1/8” 3’7” 13.00 2.25” 2.25” 3.13” 2” 2.31”
1-1/4” 4’0” 15.98 2.5” 2.5” 3.5” 2.25” 2.56”
1-3/8” 4’5” 19.20 2” 2.5” 4” 2.25” 2.56”
1-1/2” 4’9” 22.80 3” 2.75” 4.38” 2.5” 2.81”
1-3/4” 5’5” 30.60 3.5” 3.5” 5” 3” 3.56”
2” 6’4” 39.60 4” 3.75” 6.13” 3.25” 3.81”
